Raw File System Analysis (FAT32 File Recovery)

This post isn’t about upcoming features, it’s about things you can already do with Cerbero. What we’ll see is how to import structures used for file system analysis from C/C++ sources, use them to analyze raw hex data, create a script to do the layout work for us in the future and at the end we’ll see how to create a little utility to recover deleted files. The file system used for this demonstration is FAT32, which is simple enough to avoid making the post too long.

Import file system structures

Importing file system structures from C/C++ sources is easy thanks to the Header Manager tool. In fact, it took me less than 30 minutes to import the structures for the most common file systems from different code bases. Click here to download the archive with all the headers.

Here’s the list of headers I have created:

  • ext – ext2/3/4 imported from FreeBSD
  • ext2 – imported from Linux
  • ext3 – imported from Linux
  • ext4 – imported from Linux
  • fat – imported from FreeBSD
  • hfs – imported from Darwin
  • iso9660 – imported from FreeBSD
  • ntfs – imported from Linux
  • reiserfs – imported from Linux
  • squashfs – imported from Linux
  • udf – imported from FreeBSD

Copy the files to your user headers directory (e.g. “AppData\Roaming\CProfiler\headers”). It’s better to not put them in a sub-directory. Please note that apart from the FAT structures, none of the others have been tried out.

Note: Headers created from Linux sources contain many additional structures, this is due to the includes in the parsed source code. This is a bit ugly: in the future it would be a good idea to add an option to import only structures belonging to files in a certain path hierarchy and those referenced by them.

Since this post is about FAT, we’ll see how to import the structures for this particular file system. But the same steps apply for other file systems as well and not only for them. If you’ve never imported structures before, you might want to take a look at this previous post about dissecting an ELF and read the documentation about C++ types.

We open the Header Manager and configure some basic options like ‘OS’, ‘Language’ and ‘Standard’. In this particular case I imported the structures from FreeBSD, so I just set ‘freebsd’, ‘c’ and ‘c11’. Then we need to add the header paths, which in my case were the following:

C:/Temp/freebsd-master
C:/Temp/freebsd-master/include
C:/Temp/freebsd-master/sys
C:/Temp/freebsd-master/sys/x86
C:/Temp/freebsd-master/sys/i386/include
C:/Temp/freebsd-master/sys/i386

Then in the import edit we insert the following code:

HEADER_START("fat");

#include
#include
#include
#include
#include

Now we can click on ‘Import’.

Import FAT structures

That’s it! We now have all the FAT structures we need in the ‘fat’ header file.

It should also be mentioned that I modified some fields of the direntry structure from the Header Manager, because they were declared as byte arrays, but should actually be shown as short and int values.

Parse the Master Boot Record

Before going on with the FAT analysis, we need to briefly talk about the MBR. FAT partitions are usually found in a larger container, like a partitioned device.

To perform my tests I created a virtual hard-disk in Windows 7 and formatted it with FAT32.

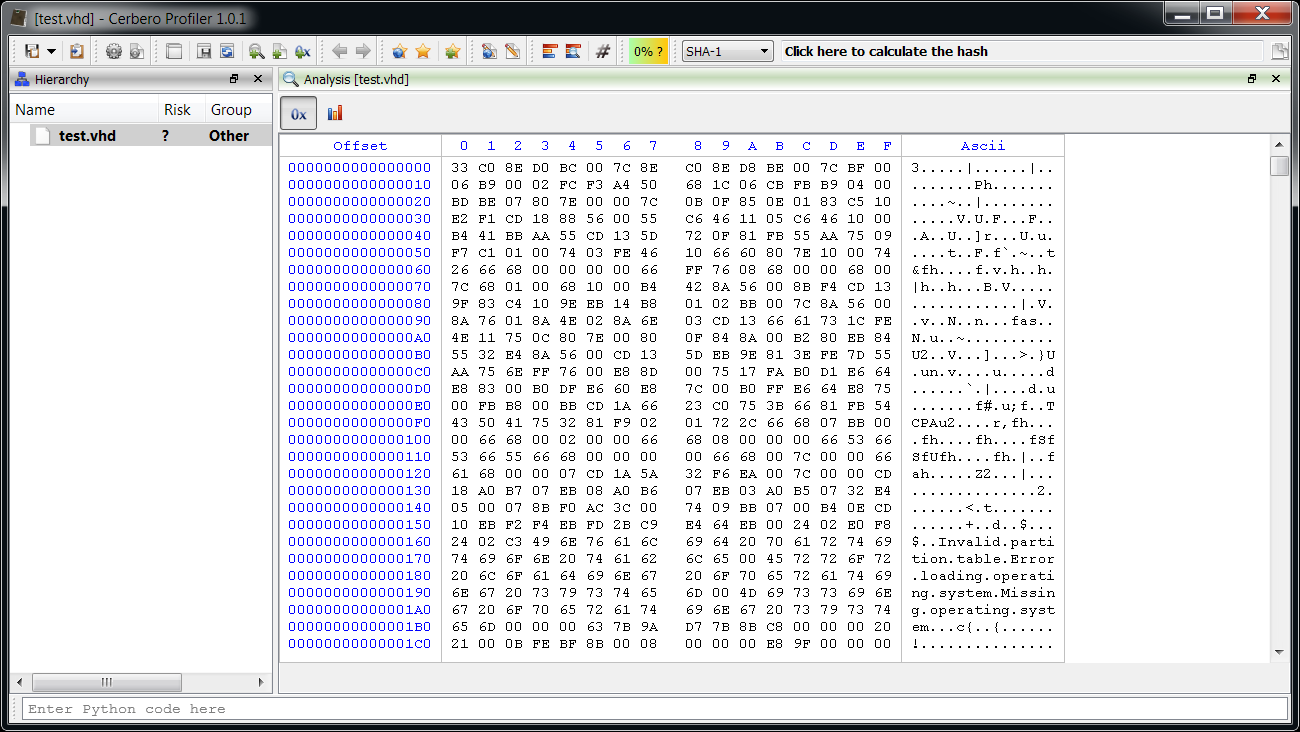

VHD MBR

As you might be able to spot, the VHD file begins with a MBR. In order to locate the partitions it is necessary to parse the MBR first. The format of the MBR is very simple and you can look it up on Wikipedia. In this case we’re only interested in the start and size of each partition.

Cerbero doesn’t yet support the MBR format, although it might be added in the future. In any case, it’s easy to add the missing feature: I wrote a small hook which parses the MBR and adds the partitions as embedded objects.

Here’s the cfg data:

[GenericMBR]
label = Generic MBR Partitions
file = generic_mbr.py
scanning = scanning

And here’s the Python script:

def scanning(sp, ud):
    # make sure we're at the first level and that the format is unknown
    if sp.scanNesting() != 0 or sp.getObjectFormat() != "":
        return
    # check boot signature
    obj = sp.getObject()
    bsign = obj.Read(0x1FE, 2)
    if len(bsign) != 2 or bsign[0] != 0x55 or bsign[1] != 0xAA:
        return
    # add partitions
    for x in range(4):
        entryoffs = 0x1BE + (x * 0x10)
        offs, ret = obj.ReadUInt32(entryoffs + 8)
        size, ret = obj.ReadUInt32(entryoffs + 12)
        if offs != 0 and size != 0:
            sp.addEmbeddedObject(offs * 512, size * 512, "?", "Partition #" + str(x + 1))

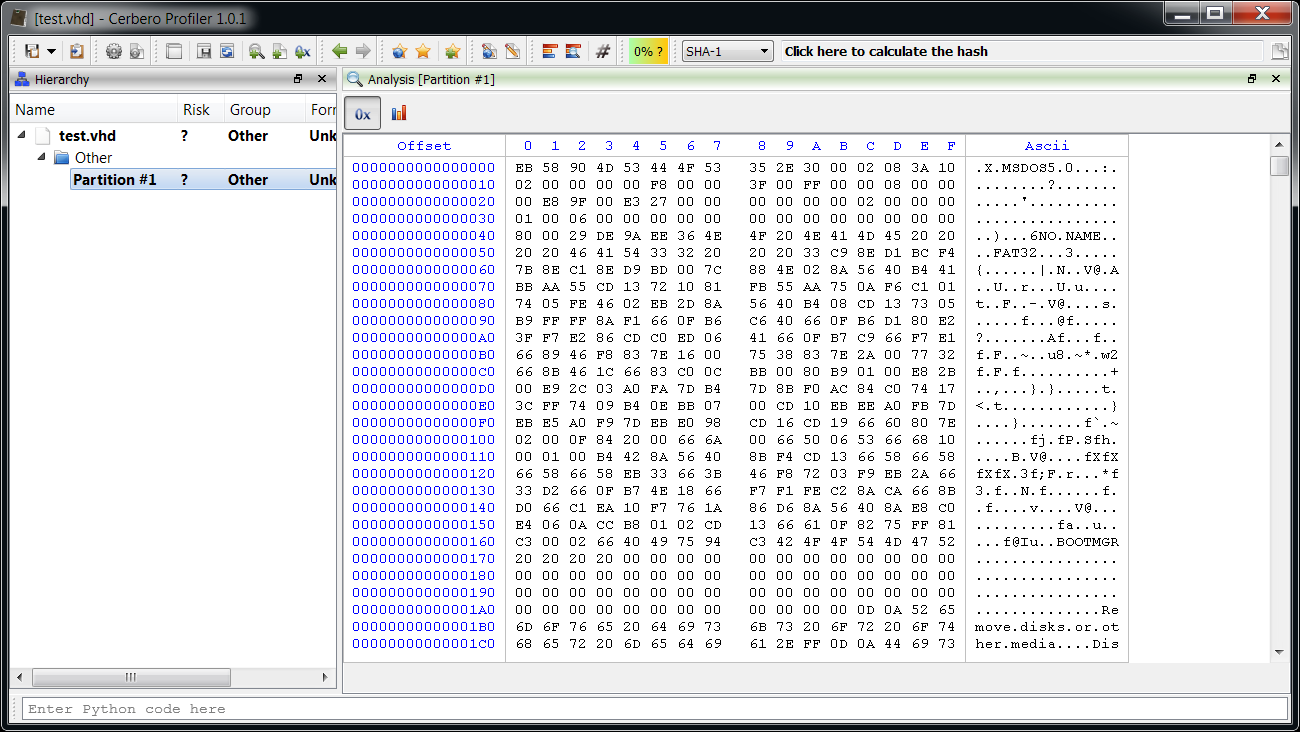

And now we can inspect the partitions directly (do not forget to enable the hook from the extensions).

VHD Partitions

Easy.

Analyze raw file system data

The basics of the FAT format are quite simple to describe. The data begins with the boot sector header and some additional fields for FAT32 over FAT16 and for FAT16 over FAT12. We’re only interested in FAT32, so to simplify the description I will only describe this particular variant. The boot sector header specifies essential information such as sector size, sectors in clusters, number of FATs, size of FAT etc. It also specifies the number of reserved sectors. These reserved sectors start with the boot sector and where they end the FAT begins.

The ‘FAT’ in this case is not just the name of the file system, but the File Allocation Table itself. The size of the FAT, as already mentioned, is specified in the boot sector header. Usually, for data-loss prevention, more than one FAT is present. Normally there are two FATs: the number is specified in the boot sector header. The backup FAT follows the first one and has the same size. The data after the FAT(s) and right until the end of the partition includes directory entries and file data. The cluster right after the FAT(s) usually starts with the Root Directory entry, but even this is specified in the boot sector header.

The FAT itself is just an array of 32-bit indexes pointing to clusters. The first 2 indexes are special: they specify the range of EOF values for indexes. It works like this: a directory entry for a file (directories and files share the same structure) specifies the first cluster of said file, if the file is bigger than one cluster, the FAT is looked up at the index representing the current cluster, this index specifies the next cluster belonging to the file. If the index contains one of the values in the EOF range, the file has no more clusters or perhaps contains a damaged cluster (0xFFFFFFF7). Indexes with a value of zero are marked as free. Cluster index are 2-based: cluster 2 is actually cluster 0 in the data region. This means that if the Root Directory is specified to be located at cluster 2, it is located right after the FATs.

Hence, the size of the FAT depends on the size of the partition, and it must be big enough to accommodate an array large enough to represent every cluster in the data area.

So, let’s perform our raw analysis by adding the boot sector header and the additional FAT32 fields:

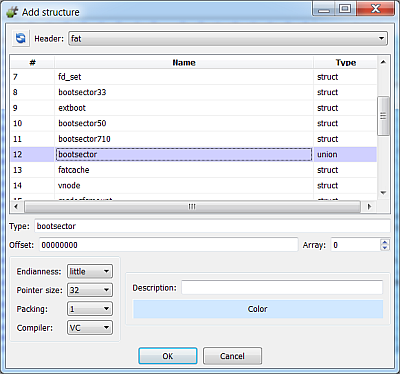

Add struct

Note: When adding a structure make sure that it’s packed to 1, otherwise field alignment will be wrong.

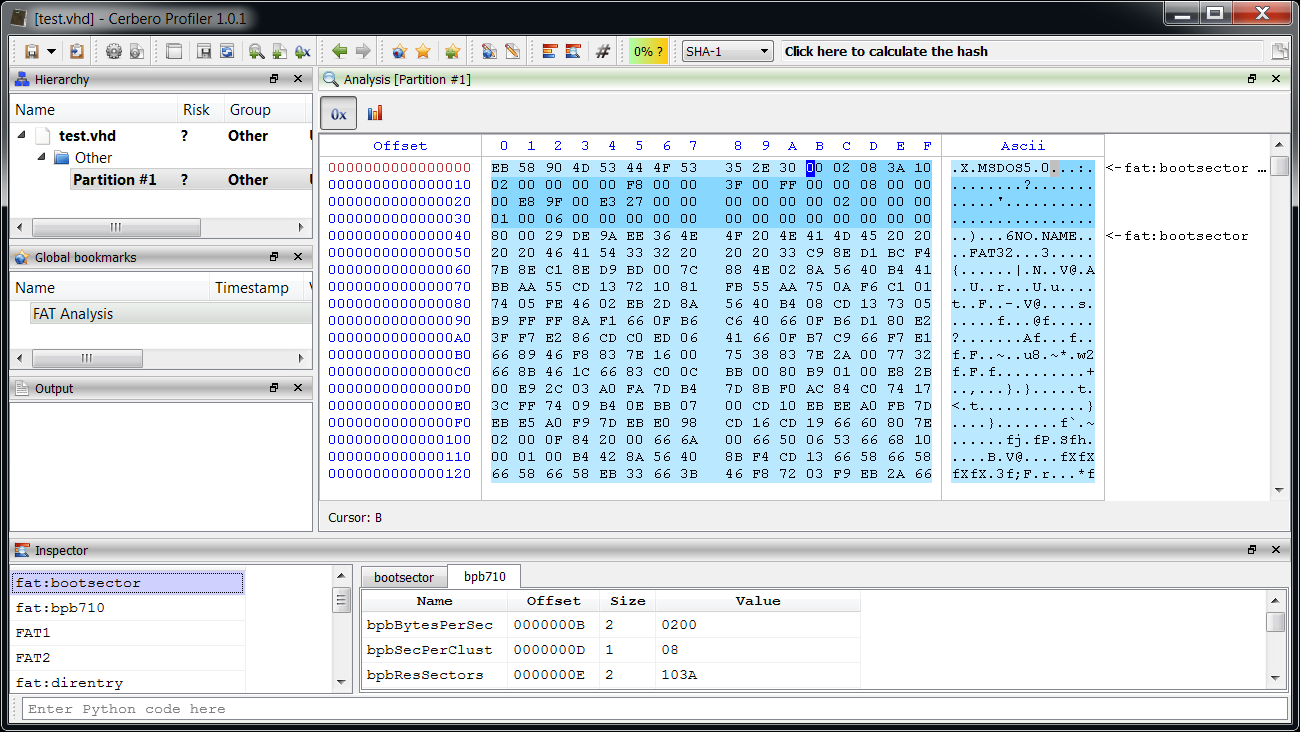

Boot sector

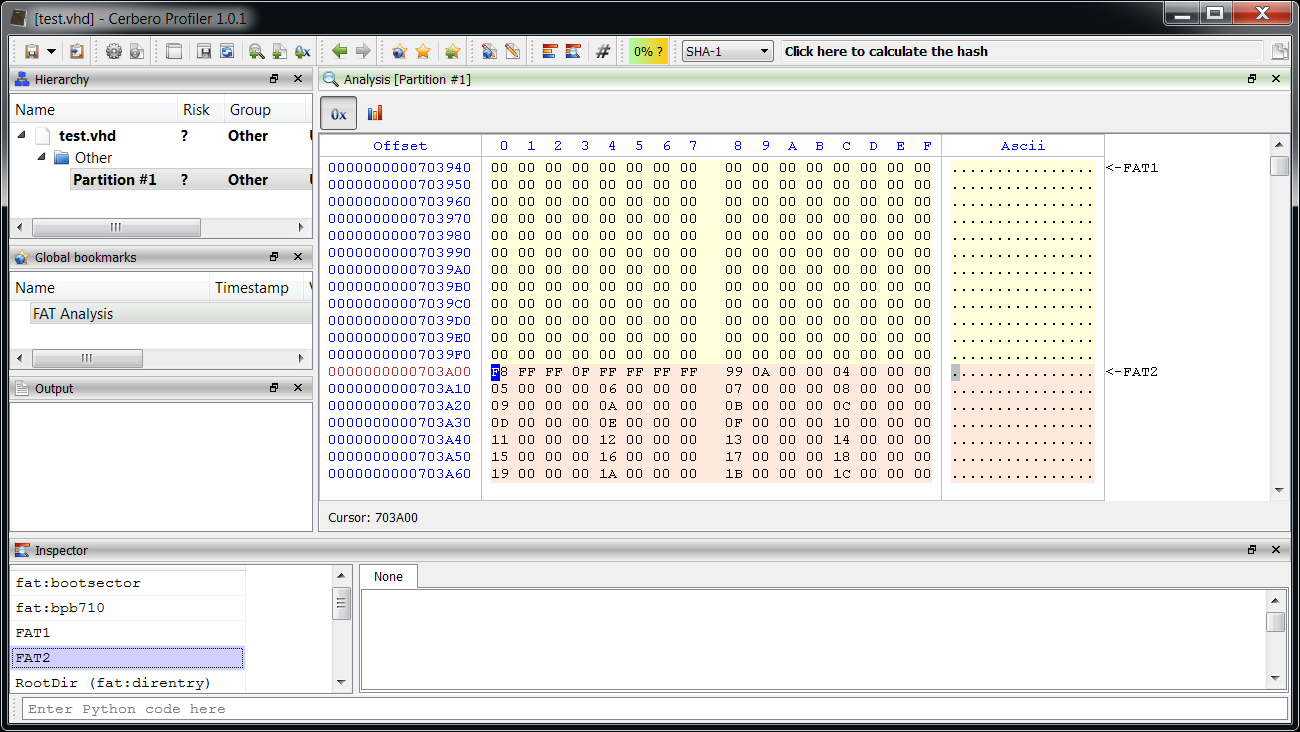

Then we highlight the FATs.

FATs

And the Root Directory entry.

Root Directory

This last step was just for demonstration, as we’re currently not interested in the Root Directory. Anyway, now we have a basic layout of the FAT to inspect and this is useful.

Let’s now make our analysis applicable to future cases.

Automatically create an analysis layout

Manually analyzing a file is very useful and it’s the first step everyone of us has to do when studying an unfamiliar file format. However, chances are that we have to analyze files with the same format in the future.

That’s why we could write a small Python script to create the analysis layout for us. We’ve already seen how to do this in the post about dissecting an ELF.

Here’s the code:

from Pro.Core import *
from Pro.UI import *

def buildFATLayout(obj, l):
    hname = "fat"
    hdr = CFFHeader()
    if hdr.LoadFromFile(hname) == False:
        return
    sopts = CFFSO_VC | CFFSO_Pack1
    d = LayoutData()
    d.setTypeOptions(sopts)

    # add boot sector header and FAT32 fields
    bhdr = obj.MakeStruct(hdr, "bootsector", 0, sopts)
    d.setColor(ntRgba(0, 170, 255, 70))
    d.setStruct(hname, "bootsector")
    l.add(0, bhdr.Size(), d)
    bexhdr = obj.MakeStruct(hdr, "bpb710", 0xB, sopts)
    d.setStruct(hname, "bpb710")
    l.add(0xB, bexhdr.Size(), d)

    # get FAT32 info
    bytes_per_sec = bexhdr.Num("bpbBytesPerSec")
    sec_per_clust = bexhdr.Num("bpbSecPerClust")
    res_sect = bexhdr.Num("bpbResSectors")
    nfats = bexhdr.Num("bpbFATs")
    fat_sects = bexhdr.Num("bpbBigFATsecs")
    root_clust = bexhdr.Num("bpbRootClust")
    bytes_per_clust = bytes_per_sec * sec_per_clust

    # add FAT intervals, highlight copies with a different color
    d2 = LayoutData()
    d2.setColor(ntRgba(255, 255, 127, 70))
    fat_start = res_sect * bytes_per_sec
    fat_size = fat_sects * bytes_per_sec
    d2.setDescription("FAT1")
    l.add(fat_start, fat_size, d2)
    # add copies
    d2.setColor(ntRgba(255, 170, 127, 70))
    for x in range(nfats - 1):
        fat_start = fat_start + fat_size
        d2.setDescription("FAT" + str(x + 2))
        l.add(fat_start, fat_size, d2)
    fat_end = fat_start + fat_size

    # add root directory
    rootdir_offs = (root_clust - 2) + fat_end
    rootdir = obj.MakeStruct(hdr, "direntry", rootdir_offs, sopts)
    d.setStruct(hname, "direntry")
    d.setDescription("Root Directory")
    l.add(rootdir_offs, rootdir.Size(), d)


hv = proContext().getCurrentView()
if hv.isValid() and hv.type() == ProView.Type_Hex:
    c = hv.getData()
    obj = CFFObject()
    obj.Load(c)
    lname = "FAT_ANALYSIS" # we could make the name unique
    l = proContext().getLayout(lname)
    buildFATLayout(obj, l)
    # apply the layout to the current hex view
    hv.setLayoutName(lname)

We can create an action with this code or just run it on the fly with Ctrl+Alt+R.

Recover deleted files

Now that we know where the FAT is located and where the data region begins, we can try to recover deleted files. There’s more than one possible approach to this task (more on that later). What I chose to do is to scan the entire data region for file directory entries and to perform integrity checks on them, in order to establish that they really are what they seem to be.

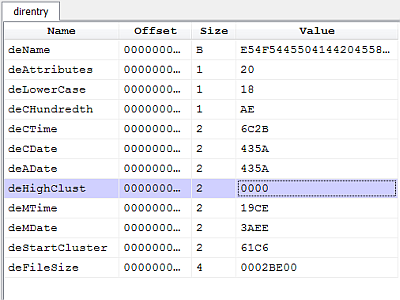

Let’s take a look at the original direntry structure:

struct direntry {
	u_int8_t	deName[11];	/* filename, blank filled */
#define	SLOT_EMPTY	0x00		/* slot has never been used */
#define	SLOT_E5		0x05		/* the real value is 0xe5 */
#define	SLOT_DELETED	0xe5		/* file in this slot deleted */
	u_int8_t	deAttributes;	/* file attributes */
#define	ATTR_NORMAL	0x00		/* normal file */
#define	ATTR_READONLY	0x01		/* file is readonly */
#define	ATTR_HIDDEN	0x02		/* file is hidden */
#define	ATTR_SYSTEM	0x04		/* file is a system file */
#define	ATTR_VOLUME	0x08		/* entry is a volume label */
#define	ATTR_DIRECTORY	0x10		/* entry is a directory name */
#define	ATTR_ARCHIVE	0x20		/* file is new or modified */
	u_int8_t	deLowerCase;	/* NT VFAT lower case flags */
#define	LCASE_BASE	0x08		/* filename base in lower case */
#define	LCASE_EXT	0x10		/* filename extension in lower case */
	u_int8_t	deCHundredth;	/* hundredth of seconds in CTime */
	u_int8_t	deCTime[2];	/* create time */
	u_int8_t	deCDate[2];	/* create date */
	u_int8_t	deADate[2];	/* access date */
	u_int8_t	deHighClust[2];	/* high bytes of cluster number */
	u_int8_t	deMTime[2];	/* last update time */
	u_int8_t	deMDate[2];	/* last update date */
	u_int8_t	deStartCluster[2]; /* starting cluster of file */
	u_int8_t	deFileSize[4];	/* size of file in bytes */
};

Every directory entry has to be aligned to 0x20. If the file has been deleted the first byte of the deName field will be set to SLOT_DELETED (0xE5). That’s the first thing to check. The directory name should also not contain certain values like 0x00. According to Wikipedia, the following values aren’t allowed:

  • ” * / : < > ? \ |
    Windows/MS-DOS has no shell escape character
  • + , . ; = [ ]
    They are allowed in long file names only.
  • Lower case letters a–z
    Stored as A–Z. Allowed in long file names.
  • Control characters 0–31
  • Value 127 (DEL)

We can use these rules to validate the short file name. Moreover, certain directory entries are used only to store long file names:

/*
 * Structure of a Win95 long name directory entry
 */
struct winentry {
	u_int8_t	weCnt;
#define	WIN_LAST	0x40
#define	WIN_CNT		0x3f
	u_int8_t	wePart1[10];
	u_int8_t	weAttributes;
#define	ATTR_WIN95	0x0f
	u_int8_t	weReserved1;
	u_int8_t	weChksum;
	u_int8_t	wePart2[12];
	u_int16_t	weReserved2;
	u_int8_t	wePart3[4];
};

We can exclude these entries by making sure that the deAttributes/weAttributes isn’t ATTR_WIN95 (0xF).

Once we have confirmed the integrity of the file name and made sure it’s not a long file name entry, we can validate the deAttributes. It should definitely not contain the flags ATTR_DIRECTORY (0x10) and ATTR_VOLUME (8).

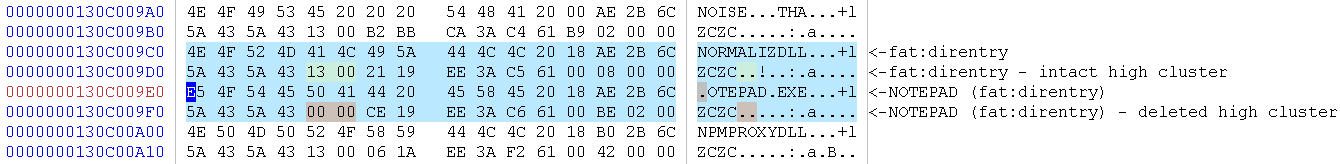

Finally we can make sure that deFileSize isn’t 0 and that deHighClust combined with deStartCluster contains a valid cluster index.

It’s easier to write the code than to talk about it. Here’s a small snippet which looks for deleted files and prints them to the output view:

from Pro.Core import *

class FATData(object):
    pass

def setupFATData(obj):
    hdr = CFFHeader()
    if hdr.LoadFromFile("fat") == False:
        return None
    bexhdr = obj.MakeStruct(hdr, "bpb710", 0xB, CFFSO_VC | CFFSO_Pack1)
    fi = FATData()
    fi.obj = obj
    fi.hdr = hdr
    # get FAT32 info
    fi.bytes_per_sec = bexhdr.Num("bpbBytesPerSec")
    fi.sec_per_clust = bexhdr.Num("bpbSecPerClust")
    fi.res_sect = bexhdr.Num("bpbResSectors")
    fi.nfats = bexhdr.Num("bpbFATs")
    fi.fat_sects = bexhdr.Num("bpbBigFATsecs")
    fi.root_clust = bexhdr.Num("bpbRootClust")
    fi.bytes_per_clust = fi.bytes_per_sec * fi.sec_per_clust
    fi.fat_offs = fi.res_sect * fi.bytes_per_sec
    fi.fat_size = fi.fat_sects * fi.bytes_per_sec
    fi.data_offs = fi.fat_offs + (fi.fat_size * fi.nfats)
    fi.data_size = obj.GetSize() - fi.data_offs
    fi.data_clusters = fi.data_size // fi.bytes_per_clust
    return fi

invalid_short_name_chars = [
    127,
    ord('"'), ord("*"), ord("/"), ord(":"), ord("<"), ord(">"), ord("?"), ord("\\"), ord("|"),
    ord("+"), ord(","), ord("."), ord(";"), ord("="), ord("["), ord("]")
    ]
def validateShortName(name):
    n = len(name)
    for x in range(n):
        c = name[x]
        if (c >= 0 and c <= 31) or (c >= 0x61 and c <= 0x7A) or c in invalid_short_name_chars:
            return False
    return True

# validate short name
# validate attributes: avoid long file name entries, directories and volumes
# validate file size
# validate cluster index
def validateFileDirectoryEntry(fi, de):
    return validateShortName(de.name) and de.attr != 0xF and (de.attr & 0x18) == 0 and \
            de.file_size != 0 and de.clust_idx >= 2 and de.clust_idx - 2 < fi.data_clusters

class DirEntryData(object):
    pass

def getDirEntryData(b):
    # reads after the first byte
    de = DirEntryData()
    de.name = b.read(10)
    de.attr = b.u8()
    b.read(8) # skip some fields
    de.high_clust = b.u16()
    b.u32() # skip two fields
    de.clust_idx = (de.high_clust << 16) | b.u16()
    de.file_size = b.u32()
    return de

def findDeletedFiles(fi):
    # scan the data region one cluster at a time using a buffer
    # this is more efficient than using an array of CFFStructs
    dir_entries = fi.data_size // 0x20
    b = fi.obj.ToBuffer(fi.data_offs)
    b.setBufferSize(0xF000)
    for x in range(dir_entries):
        try:
            unaligned = b.getOffset() % 0x20
            if unaligned != 0:
                b.read(0x20 - unaligned)
            # has it been deleted?
            if b.u8() != 0xE5:
                continue
            # validate fields
            de = getDirEntryData(b)
            if validateFileDirectoryEntry(fi, de) == False:
                continue
            # we have found a deleted file entry!
            name = de.name.decode("ascii", "replace")
            print(name + " - offset: " + hex(b.getOffset() - 0x20))
        except:
            # an exception occurred, debug info
            print("exception at offset: " + hex(b.getOffset() - 0x20))
            raise

obj = proCoreContext().currentScanProvider().getObject()
fi = setupFATData(obj)
if fi != None:
    findDeletedFiles(fi)

This script is to be run on the fly with Ctrl+Alt+R. It's not complete, otherwise I would have added a wait box, since like it's now the script just blocks the UI for the entire execution. We'll see later how to put everything together in a meaningful way.

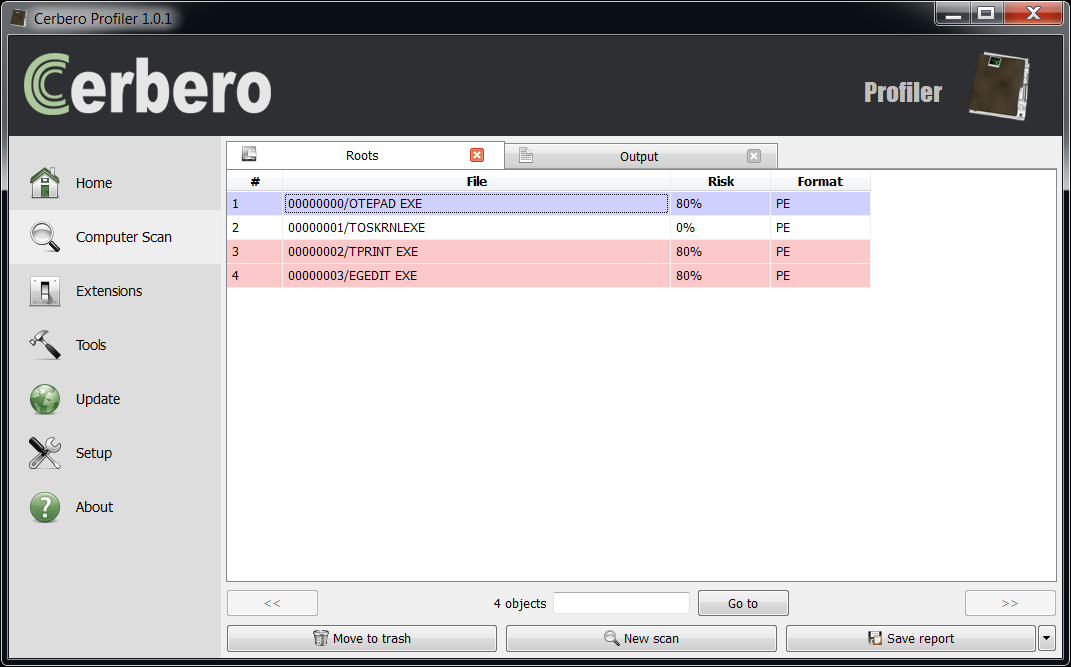

The output of the script is the following:

���������� - offset: 0xd6a0160
���������� - offset: 0x181c07a0
���������� - offset: 0x1d7ee980
&�&�&�&�&� - offset: 0x1e7dee20
'�'�'�'�'� - offset: 0x1f3b49a0
'�'�'�'�'� - offset: 0x1f5979a0
'�'�'�'�'� - offset: 0x1f9f89a0
'�'�'�'�'� - offset: 0x1fbdb9a0
$�$�$�$�$� - offset: 0x1fdcad40
&�&�&�&�&� - offset: 0x1fdcc520
'�'�'�'�'� - offset: 0x2020b9a0
'�'�'�'�'� - offset: 0x205a99a0
'�'�'�'�'� - offset: 0x20b0fe80
'�'�'�'�'� - offset: 0x20b0fec0
'�'�'�'�'� - offset: 0x20e08e80
'�'�'�'�'� - offset: 0x20e08ec0
'�'�'�'�'� - offset: 0x21101e80
'�'�'�'�'� - offset: 0x21101ec0
'�'�'�'�'� - offset: 0x213fae80
'�'�'�'�'� - offset: 0x213faec0
 � � � � � - offset: 0x21d81fc0
#�#�#�#�#� - offset: 0x221b96a0
'�'�'�'�'� - offset: 0x226279a0
 � � � � � - offset: 0x2298efc0
'�'�'�'�'� - offset: 0x22e1ee80
'�'�'�'�'� - offset: 0x22e1eec0
'�'�'�'�'� - offset: 0x232c69a0
'�'�'�'�'� - offset: 0x234a99a0
'�'�'�'�'� - offset: 0x2368c9a0
'�'�'�'�'� - offset: 0x23a37e80
'�'�'�'�'� - offset: 0x23a37ec0
'�'�'�'�'� - offset: 0x23d30e80
'�'�'�'�'� - offset: 0x23d30ec0
'�'�'�'�'� - offset: 0x24029e80
'�'�'�'�'� - offset: 0x24029ec0
'�'�'�'�'� - offset: 0x24322e80
'�'�'�'�'� - offset: 0x24322ec0
'�'�'�'�'� - offset: 0x2461be80
'�'�'�'�'� - offset: 0x2461bec0
'�'�'�'�'� - offset: 0x2474d9a0
 � � � � � - offset: 0x24ab4fc0
 � � � � � - offset: 0x24f01fc0
 � � � � � - offset: 0x2534efc0
���������O - offset: 0x33b4f2e0
�������@@@ - offset: 0x345c7200
OTEPAD EXE - offset: 0x130c009e0
TOSKRNLEXE - offset: 0x130c00b80
TPRINT EXE - offset: 0x130c00bc0
��S�W����� - offset: 0x1398fddc0
��S�V���YY - offset: 0x13af3ad60
��M����E�� - offset: 0x13bbec640
EGEDIT EXE - offset: 0x13ef1f1a0

We can see many false positives in the list. The results would be cleaner if we allowed only ascii characters in the name, but this wouldn't be correct, because short names do allow values above 127. We could make this an extra option, generally speaking it's probably better to have some false positives than missing valid entries. Among the false positives we can spot four real entries. What I did on the test disk was to copy many files from the System32 directory of Windows and then to delete four of them, exactly those four found by the script.

The next step is recovering the content of the deleted files. The theory here is that we retrieve the first cluster of the file from the directory entry and then use the FAT to retrieve more entries until the file size is satisfied. The cluster indexes in the FAT won't contain the next cluster value and will be set to 0. We look for adjacent 0 indexes to find free clusters which may have belonged to the file. Another approach would be to dump the entire file size starting from the first cluster, but that approach is worse, because it doesn't tolerate even a little bit of fragmentation in the FAT. Of course, heavy fragmentation drastically reduces the chances of a successful recovery.

However, there's a gotcha which I wasn't aware of and it wasn't mentioned in my references. Let's take a look at the deleted directory entry of 'notepad.exe'.

Notepad directory entry

In FAT32 the index of the first cluster is obtained by combining the high-word deHighClust with the low-word deStartCluster in order to obtain a 32-bit index.

The problem is that the high-word has been zeroed. The actual value should be 0x0013. Seems this behavior is common on Microsoft operating systems as mentioned in this thread on Forensic Focus.

This means that only files with a cluster index equal or lower than 0xFFFF will be correctly pointed at. This makes another approach for FAT32 file recovery more appealing: instead of looking for deleted directly entries, one could directly look for cluster indexes with a value of 0 in the FAT and recognize the start of a file by matching signatures. Cerbero offers an API to identify file signatures (although limited to the file formats it supports), so we could easily implement this logic. Another advantage of this approach is that it doesn't require a deleted file directory entry to work, increasing the possibility to recover deleted files. However, even that approach has certain disadvantages:

  1. Files which have no signature (like text files) or are not identified won't be recovered.
  2. The name of the files won't be recovered at all, unless they contain it themselves, but that's unlikely.

Disadvantages notwithstanding I think that if one had to choose between the two approaches the second one holds higher chances of success. So why then did I opt to do otherwise? Because I thought it would be nice to recover file names, even though only partially and delve a bit more in the format of FAT32. The blunt approach could be generalized more and requires less FAT knowledge.

However, the surely best approach is to combine both systems in order to maximize chances of recovery at the cost of duplicates. But this is just a demonstration, so let's keep it relatively simple and let's go back to the problem at hand: the incomplete start cluster index.

Recovering files only from lower parts of the disk isn't really good enough. We could try to recover the high-word of the index from adjacent directory entries of existing files. For instance, let's take a look at the deleted directory entry:

Deleted entry

As you can see, the directory entry above the deleted one represents a valid file entry and contains an intact high-word we could use to repair our index. Please remember that this technique is just something I came up with and offers no guarantee whatsoever. In fact, it only works under certain conditions:

  1. The cluster containing the deleted entry must also contain a valid file directory entry.
  2. The FAT can't be heavily fragmented, otherwise the retrieved high-word might not be correct.

Still I think it's interesting and while it might not always be successful in automatic mode, it can be helpful when trying a manual recovery.

This is how the code to recover partial cluster indexes might look like:

def recoverClusterHighWord(fi, offs):
    cluster_start = offs - (offs % fi.bytes_per_clust)
    deloffs = offs - (offs % 0x20)
    nbefore = (deloffs - cluster_start) // 0x20
    nafter = (fi.bytes_per_clust - (deloffs - cluster_start)) // 0x20 - 1
    b = fi.obj.ToBuffer(deloffs + 0x20, Bufferize_BackAndForth)
    b.setBufferSize(fi.bytes_per_clust * 2)
    de_before = None
    de_after = None
    try:
        # try to find a valid entry before
        if nbefore > 0:
            for x in range(nbefore):
                b.setOffset(b.getOffset() - 0x40)
                # it can't be a deleted entry
                if b.u8() == 0xE5:
                    continue
                de = getDirEntryData(b)
                if validateFileDirectoryEntry(fi, de):
                    de_before = de
                    break
        # try to find a valid entry after
        if nafter > 0 and de_before == None:
            b.setOffset(deloffs + 0x20)
            for x in range(nafter):
                # it can't be a deleted entry
                if b.u8() == 0xE5:
                    continue
                de = getDirEntryData(b)
                if validateFileDirectoryEntry(fi, de):
                    de_after = de
                    break
    except:
        pass
    # return the high-word if any
    if de_before != None:
        return de_before.high_clust
    if de_after != None:
        return de_after.high_clust
    return 0

It tries to find a valid file directory entry before and after the deleted entry, remaining in the same cluster. Now we can write a small function to recover the file content.

# dump the content of a deleted file using the FAT
def dumpDeletedFileContent(fi, f, start_cluster, file_size):
    while file_size > 0:
        offs = clusterToOffset(fi, start_cluster)
        data = fi.obj.Read(offs, fi.bytes_per_clust)
        if file_size < fi.bytes_per_clust:
            data = data[:file_size]
        f.write(data)
        # next
        file_size = file_size - min(file_size, fi.bytes_per_clust)
        # find next cluster
        while True:
            start_cluster = start_cluster + 1
            idx_offs = start_cluster * 4 + fi.fat_offs
            idx, ok = fi.obj.ReadUInt32(idx_offs)
            if ok == False:
                return False
            if idx == 0:
                break
    return True

All the pieces are there, it's time to bring them together.

Create a recovery tool

With the recently introduced logic provider extensions, it's possible to create every kind of easy-to-use custom utility. Until now we have seen useful pieces of code, but using them as provided is neither user-friendly nor practical. Wrapping them up in a nice graphical utility is much better.

Home view

What follows is the source code or at least part of it: I have omitted those parts which haven't significantly changed. You can download the full source code from here.

Here's the cfg entry:

[FAT32Recovery]
label = FAT32 file recovery utility
descr = Recover files from a FAT32 partition or drive.
file = fat32_recovery.py
init = FAT32Recovery_init

And the Python code:

class RecoverySystem(LocalSystem):

    def __init__(self):
        LocalSystem.__init__(self)
        self.ctx = proCoreContext()
        self.partition = None
        self.current_partition = 0
        self.fi = None
        self.counter = 0

    def wasAborted(self):
        Pro.UI.proProcessEvents(1)
        return self.ctx.wasAborted()

    def nextFile(self):
        fts = FileToScan()

        if self.partition == None:
            # get next partition
            while self.current_partition < 4:
                entryoffs = 0x1BE + (self.current_partition * 0x10)
                self.current_partition = self.current_partition + 1
                offs, ret = self.disk.ReadUInt32(entryoffs + 8)
                size, ret = self.disk.ReadUInt32(entryoffs + 12)
                if offs != 0 and size != 0:
                    cpartition = self.disk.GetStream()
                    cpartition.setRange(offs * 512, size * 512)
                    part = CFFObject()
                    part.Load(cpartition)
                    self.fi = setupFATData(part)
                    if self.fi != None:
                        self.fi.system = self
                        self.partition = part
                        self.next_entry = self.fi.data_offs
                        self.fi.ascii_names_conv = self.ascii_names_conv
                        self.fi.repair_start_clusters = self.repair_start_clusters
                        self.fi.max_file_size = self.max_file_size
                        break

        if self.partition != None:
            de = findDeletedFiles(self.fi, self.next_entry)
            if de != None:
                self.next_entry = de.offs + 0x20
                fname = "%08X" % self.counter
                f = open(self.dump_path + fname, "wb")
                if f == None:
                    ctx.msgBox(MsgErr, "Couldn't open file '" + fname + "'")
                    return fts
                dumpDeletedFileContent(self.fi, f, de.clust_idx, de.file_size)
                f.close()
                self.counter = self.counter + 1
                fts.setName(fname + "\\" + de.name)
                fts.setLocalName(self.dump_path + fname)
            else:
                self.partition = None

        return fts

def recoveryOptionsCallback(pe, id, ud):
    if id == Pro.UI.ProPropertyEditor.Notification_Close:
        path = pe.getValue(0)
        if len(path) == 0 or os.path.isdir(path) == False:
            errs = NTIntList()
            errs.append(0)
            pe.setErrors(errs)
            return False
    return True

def FAT32Recovery_init():
    ctx = Pro.UI.proContext()
    file_name = ctx.getOpenFileName("Select disk...")
    if len(file_name) == 0:
        return False

    cdisk = createContainerFromFile(file_name)
    if cdisk.isNull():
        ctx.msgBox(MsgWarn, "Couldn't open disk!")
        return False

    disk = CFFObject()
    disk.Load(cdisk)
    bsign = disk.Read(0x1FE, 2)
    if len(bsign) != 2 or bsign[0] != 0x55 or bsign[1] != 0xAA:
        ctx.msgBox(MsgWarn, "Invalid MBR!")
        return False

    dlgxml = """


""" opts = ctx.askParams(dlgxml, "FAT32RecoveryOptions", recoveryOptionsCallback, None) if opts.isEmpty(): return False s = RecoverySystem() s.disk = disk s.dump_path = os.path.normpath(opts.value(0)) + os.sep s.ascii_names_conv = "strict" if opts.value(1) else "replace" s.repair_start_clusters = opts.value(2) if opts.value(3) != 0: s.max_file_size = opts.value(3) * 1024 * 1024 proCoreContext().setSystem(s) return True

When the tool is activated it will ask for the disk file to be selected, then it will show an options dialog.

Options

In our case we can select the option 'Ascii only names' to exclude false positives.

The options dialog asks for a directory to save the recovered files. In the future it will be possible to save volatile files in the temporary directory created for the report, but since it's not yet possible, it's the responsibility of the user to delete the recovered files if he wants to.

The end results of the recovery operation:

Results

All four deleted files have been successfully recovered.

Three executables are marked as risky because intrinsic risk is enabled and only 'ntoskrnl.exe' contains a valid digital certificate.

Conclusions

I'd like to remind you that this utility hasn't been tested on disks other than on the one I've created for the post and, as already mentioned, it doesn't even implement the best method to recover files from a FAT32, which is to use a signature based approach. It's possible that in the future we'll improve the script and include it in an update.

The purpose of this post was to show some of the many things which can be done with Cerbero. I used only Cerbero for the entire job: from analysis to code development (I even wrote the entire Python code with it). And finally to demonstrate how a utility with commercial value like the one presented could be written in under 300 lines of Python code (counting comments and new-lines).

The advantages of using the Cerbero SDK are many. Among them:

  • It hugely simplifies the analysis of files. In fact, I used only two external Python functions: one to check the existence of a directory and one to normalize the path string.
  • It helps building a fast robust product.
  • It offers a graphical analysis experience to the user with none or little effort.
  • It gives the user the benefit of all the other features and extension offered by Cerbero.

To better explain what is meant by the last point, let's take the current example. Thanks to the huge amount of formats supported by Cerbero, it will be easy for the user to validate the recovered files.

Validate recovered files

In the case of Portable Executables it's extremely easy because of the presence of digital certificates, checksums and data structures. But even with other files it's easy, because Cerbero may detect errors in the format or unused ranges.

I hope you enjoyed this post!

P.S. You can download the complete source code and related files from here.

References

  1. File System Forensic Analysis - Brian Carrier
  2. Understanding FAT32 Filesystems - Paul Stoffregen
  3. Official documentation - Microsoft
  4. File Allocation Table - Wikipedia
  5. Master boot record - Wikipedia

Creating undetected malware for OS X

This article was originally published on cerbero-blog.com on October the 7th, 2013.

While this PoC is about static analysis, it’s very different than applying a packer to a malware. OS X uses an internal mechanism to load encrypted Apple executables and we’re going to exploit the same mechanism to defeat current anti-malware solutions.

OS X implements two encryption systems for its executables (Mach-O). The first one is implemented through the LC_ENCRYPTION_INFO loader command. Here’s the code which handles this command:

            case LC_ENCRYPTION_INFO:
                if (pass != 3)
                    break;
                ret = set_code_unprotect(
                    (struct encryption_info_command *) lcp,
                    addr, map, slide, vp);
                if (ret != LOAD_SUCCESS) {
                    printf("proc %d: set_code_unprotect() error %d "
                           "for file \"%s\"\n",
                           p->p_pid, ret, vp->v_name);
                    /* Don't let the app run if it's
                     * encrypted but we failed to set up the
                     * decrypter */
                     psignal(p, SIGKILL);
                }
                break;

This code calls the set_code_unprotect function which sets up the decryption through text_crypter_create:

    /* set up decrypter first */
    kr=text_crypter_create(&crypt_info, cryptname, (void*)vpath);

The text_crypter_create function is actually a function pointer registered through the text_crypter_create_hook_set kernel API. While this system can allow for external components to register themselves and handle decryption requests, we couldn’t see it in use on current versions of OS X.

The second encryption mechanism which is actually being used internally by Apple doesn’t require a loader command. Instead, it signals encrypted segments through a flag.

Protected flag

The ‘PROTECTED‘ flag is checked while loading a segment in the load_segment function:

if (scp->flags & SG_PROTECTED_VERSION_1) {
    ret = unprotect_segment(scp->fileoff,
                scp->filesize,
                vp,
                pager_offset,
                map,
                map_addr,
                map_size);
} else {
    ret = LOAD_SUCCESS;
}

The unprotect_segment function sets up the range to be decrypted, the decryption function and method. It then calls vm_map_apple_protected.

#define APPLE_UNPROTECTED_HEADER_SIZE   (3 * PAGE_SIZE_64)

static load_return_t
unprotect_segment(
    uint64_t    file_off,
    uint64_t    file_size,
    struct vnode        *vp,
    off_t               macho_offset,
    vm_map_t    map,
    vm_map_offset_t     map_addr,
    vm_map_size_t       map_size)
{
    kern_return_t       kr;
    /*
     * The first APPLE_UNPROTECTED_HEADER_SIZE bytes (from offset 0 of
     * this part of a Universal binary) are not protected...
     * The rest needs to be "transformed".
     */
    if (file_off <= APPLE_UNPROTECTED_HEADER_SIZE &&
        file_off + file_size <= APPLE_UNPROTECTED_HEADER_SIZE) {
        /* it's all unprotected, nothing to do... */
        kr = KERN_SUCCESS;
    } else {
        if (file_off <= APPLE_UNPROTECTED_HEADER_SIZE) {
            /*
             * We start mapping in the unprotected area.
             * Skip the unprotected part...
             */
            vm_map_offset_t     delta;
            delta = APPLE_UNPROTECTED_HEADER_SIZE;
            delta -= file_off;
            map_addr += delta;
            map_size -= delta;
        }
        /* ... transform the rest of the mapping. */
        struct pager_crypt_info crypt_info;
        crypt_info.page_decrypt = dsmos_page_transform;
        crypt_info.crypt_ops = NULL;
        crypt_info.crypt_end = NULL;
#pragma unused(vp, macho_offset)
        crypt_info.crypt_ops = (void *)0x2e69cf40;
        kr = vm_map_apple_protected(map,
                        map_addr,
                        map_addr + map_size,
                        &crypt_info);
    }
    if (kr != KERN_SUCCESS) {
        return LOAD_FAILURE;
    }
    return LOAD_SUCCESS;
}

Two things about the code above. The first 3 pages (0x3000) of a Mach-O can't be encrypted/decrypted. And, as can be noticed, the decryption function is dsmos_page_transform.

Just like text_crypter_create even dsmos_page_transform is a function pointer which is set through the dsmos_page_transform_hook kernel API. This API is called by the kernel extension "Dont Steal Mac OS X.kext", allowing for the decryption logic to be contained outside of the kernel in a private kernel extension by Apple.

Apple uses this technology to encrypt some of its own core components like "Finder.app" or "Dock.app". On current OS X systems this mechanism doesn't provide much of a protection against reverse engineering in the sense that attaching a debugger and dumping the memory is sufficient to retrieve the decrypted executable.

However, this mechanism can be abused by encrypting malware which will no longer be detected by the static analysis technologies of current security solutions.

To demonstrate this claim we took a known OS X malware:

Scan before encryption

Since this is our public disclosure, we will say that the detection rate stood at about 20-25.

And encrypted it:

Scan after encryption

After encryption has been applied, the malware is no longer detected by scanners at VirusTotal. The problem is that OS X has no problem in loading and executing the encrypted malware.

The difference compared to a packer is that the decryption code is not present in the executable itself and so the static analysis engine can't recognize a stub or base itself on other data present in the executable, since all segments can be encrypted. Thus, the scan engine also isn't able to execute the encrypted code in its own virtual machine for a more dynamic analysis.

Two other important things about the encryption system is that the private key is the same and is shared across different versions of OS X. And it's not a chained encryption either: but per-page. Which means that changing data in the first encrypted page doesn't affect the second encrypted page and so on.

Our flagship product, Cerbero Profiler, which is an interactive file analysis infrastructure, is able to decrypt protected executables. To dump an unprotected copy of the Mach-O just perform a “Select all” (Ctrl+A) in the main hex view and then click on “Copy into new file” like in the screen-shot below.

Mach-O decryption

The saved file can be executed on OS X or inspected with other tools.

Decrypted Mach-O

Of course, the decryption can be achieved programmatically through our Python SDK as well. Just load the Mach-O file, initialize it (ProcessLoadCommands) and save to disk the stream returned by the GetStream.

A solution to mitigate this problem could be one of the following:

  • Implement the decryption mechanism like we did.
  • Check the presence of encrypted segments. If they are present, trust only executables with a valid code signature issued by Apple.
  • 3. Check the presence of encrypted segments. If they are present, trust only executables whose cryptographic hash matches a trusted one.

This kind of internal protection system should be avoided in an operating system, because it can be abused.

After we shared our internal report, VirusBarrier Team at Intego sent us the following previous research about Apple Binary Protection:

http://osxbook.com/book/bonus/chapter7/binaryprotection/
http://osxbook.com/book/bonus/chapter7/tpmdrmmyth/
https://github.com/AlanQuatermain/appencryptor

The research talks about the old implementation of the binary protection. The current page transform hook looks like this:

  if (v9 == 0x2E69CF40) // this is the constant used in the current kernel
  {
    // current decryption algo
  }
  else
  {
    if (v9 != 0xC2286295)
    {
      // ...
      if (!some_bool)
      {
        printf("DSMOS++: WARNING -- Old Kernel\n");
        ++some_bool;
      }
    }
    // old decryption algo
  }

VirusBarrier Team also reported the following code by Steve Nygard in his class-dump utility:

https://bitbucket.org/nygard/class-dump/commits/5908ac605b5dfe9bfe2a50edbc0fbd7ab16fd09c

This is the correct decryption code. In fact, the kernel extension by Apple, just as in the code above provided by Steve Nygard, uses the OpenSSL implementation of Blowfish.

We didn't know about Nygard's code, so we did our own research about the topic and applied it to malware. We would like to thank VirusBarrier Team at Intego for its cooperation and quick addressing of the issue. At the time of writing we're not aware of any security solution for OS X, apart VirusBarrier, which isn't tricked by this technique. We even tested some of the most important security solutions individually on a local machine.

The current 0.9.9 version of Cerbero Profiler already implements the decryption of Mach-Os, even though it's not explicitly written in the changelist.

We didn't implement the old decryption method, because it didn't make much sense in our case and we're not aware of a clean way to automatically establish whether the file is old and therefore uses said encryption.

These two claims need a clarification. If we take a look at Nygard's code, we can see a check to establish the encryption method used:

#define CDSegmentProtectedMagic_None 0
#define CDSegmentProtectedMagic_AES 0xc2286295
#define CDSegmentProtectedMagic_Blowfish 0x2e69cf40

            if (magic == CDSegmentProtectedMagic_None) {
                // ...
            } else if (magic == CDSegmentProtectedMagic_Blowfish) {
                // 10.6 decryption
                // ...
            } else if (magic == CDSegmentProtectedMagic_AES) {
                // ...
            }

It checks the first dword in the encrypted segment (after the initial three non-encrypted pages) to decide which decryption algorithm should be used. This logic has a problem, because it assumes that the first encrypted block is full of 0s, so that when encrypted with AES it produces a certain magic and when encrypted with Blowfish another one. This logic fails in the case the first block contains values other than 0. In fact, some samples we encrypted didn't produce a magic for this exact reason.

Also, current versions of OS X don't rely on a magic check and don't support AES encryption. As we can see from the code displayed at the beginning of the article, the kernel doesn't read the magic dword and just sets the Blowfish magic value as a constant:

        crypt_info.crypt_ops = (void *)0x2e69cf40;

So while checking the magic is useful for normal cases, security solutions can't rely on it or else they can be easily tricked into using the wrong decryption algorithm.
